At HPS HYDROPNEU we have used our years of experience to develop power unit series that can cover a wide range of applications. Our standardized compact unit series KA, available in five sizes, already covers many common applications and can be adapted quickly and cost-effectively to your requirements due to its modular design and numerous additional options.
TECHNICAL DATA:
| Designation | Construction Size 1 |
Construction Size 2 |
Construction Size 3 |
Construction Size 4 |
Construction Size 5 |
| Max. flow rate Qmax in L/min | 2 | 4,5 | 11,5 | 15,5 | 21 |
| Operating pressure pmax in bar | 250 | ||||
| Engine power Pmax in kW | 1,1 | 2,2 | 5,5 | 7,5 | 11 |
| Oil reservoir size in L | 13 | 30 | 44 | 70 | 100 |
| Filtering | Return flow filter β 10 ≥ 75 (μm) | ||||
| Heat flow in kW emitted by the oil tank (free air circulation on all sides, temperature difference 40K) | 0,17 | 0,32 | 0,46 | 0,6 | 0,8 |
| Optional cooler max. cooling capacity in kW (together with heat radiation approx. 50% of the drive power) | 0,5 | 1 | 2,5 | 3,5 | 5 |
| Optional heating element max. heating power in kW (heating only possible in connection with steel tank) | not possible | not possible | Steel tank 40 L 1 |
Steel tank 60 L 1,25 |
1,45 |
BASIC FEATURES:
- • Compact design for easy integration into your system
- • For valve assembly of construction size NG6 (other sizes available a request)
- • Oil tank made of aluminum with high radiating capacity (steel possible on request)
- • Medium: hydraulic mineral oil HLP according to DIN 51524 part 2 (others possible on request)
- • Ambient temperature range -20 °C to +40 °C
- • Degree of protection IP55 (others possible on request)
- • Adjustable pressure relief valve as security element
- • Pressure gauge for displaying the set pressure
- • Sight glass for checking the fill level
- • Return flow filter with optical contamination indicator
- • Piping and electrical wiring up to the power unit limit
In addition to these basic equipment features, units of the HPS HYDROPNEU compact series can be individually adapted to your requirements with additional options.
SELECTABLE EQUIPMENT:
- • Number of valve positions and thus adaptation to the number of userstobe operated
- • Flexible valve assembly and thus realization of the desired function
- - Speed reduction of individual axes
- - Pressure reduction of individual axes
- - Load holding function
- • Level monitaring via electric signal transmitters
- • Tamperature monitaring via electric signal transmitters
- • Active cooling when used in a warm environment or operating in a different mode
- • Tank heaters when used in cold environments (only possible in conjunction with steel tanks)
- • Different Interfaces to the operator possible
- - Terminal box
- - Control cabinet with controls
- - Complete control system including software
- • Oil collection tray
- • Pressure accumulator
- • Various filter types
- • Different sensor technology
- • Also special versions possible such as "ATEX"
- • Additional options available on request

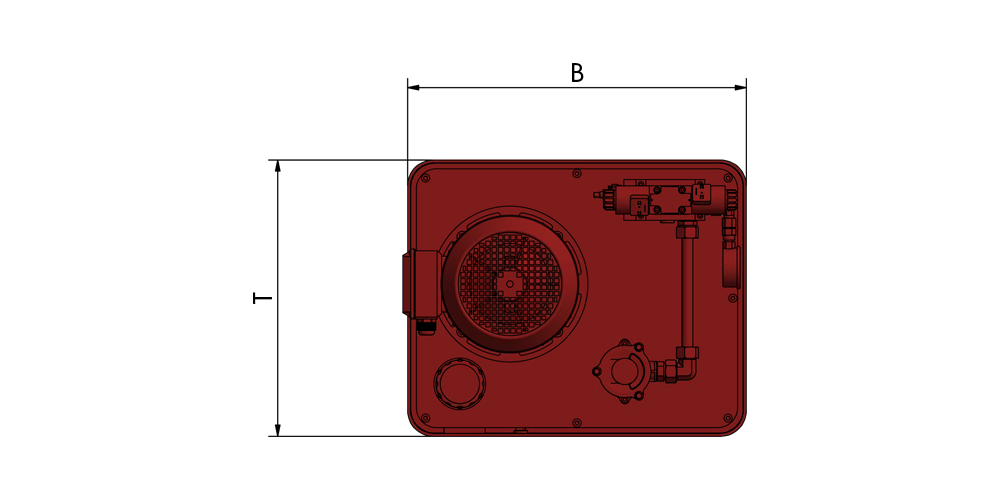

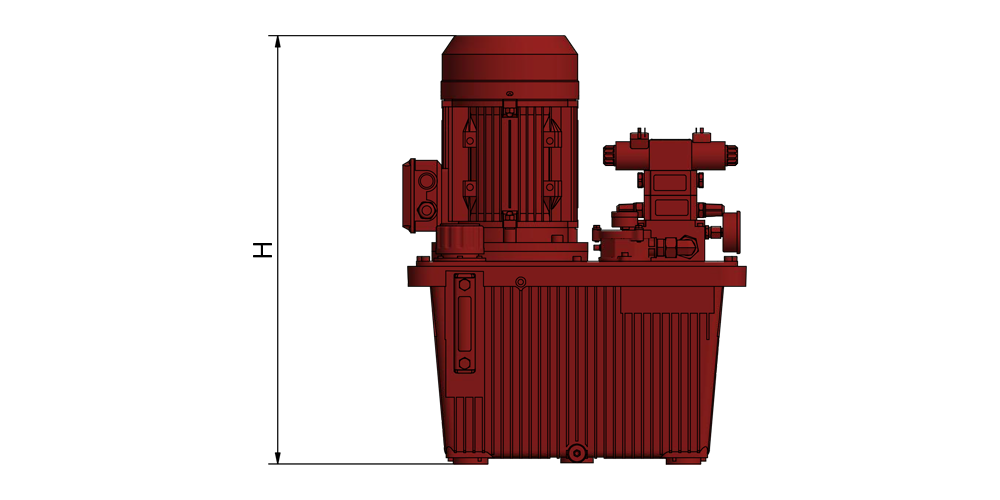

DIMENSIONS AND WEIGHTS OF THE SERIES KA:
| Designation | Construction Size 1 |
Construction Size 2 |
Construction Size 3 |
Construction Size 4 |
Construction Size 5 |
| Length L in mm | 340 | 510 | 550 | 650 | 700 |
| Width B in mm | 270 | 360 | 450 | 510 | 540 |
| Height H in mm | 550 | 660 | 700 | 900 | 1050 |
| Approx. weight in kg (without pressure fluid) |
15 | 40 | 95 | 95 | 180 |
SERVICE:
We will be happy to advise you on the design for your specific application.
On request, we carry out an installation on site with subsequent hydraulic commissioning.
Please do not hesitate to call us at + 49 (0) 711 / 34 29 99-0
You can also use our contact form.
See our products
Catalog
You will be redirected to the global GVCN 3Ds.
If it is an existing cylinder replacement, please send a request to hps@hpsinternational.com or contact your sales representative.
If it is an existing cylinder replacement, please send a request to hps@hpsinternational.com or contact your sales representative.
Hydraulic Power Units
HPS HYDROPNEU’s engineers design and build hydraulic power and control units which, in combination with the company’s cylinders, complete your hydraulic equipment.
From good value standardized compact unit KA series and our user-specific BA series to the complete hydraulic system, we offer our customers tailor-made solutions for every requirement. Based on years of experience, high standards of performance and the associated position among the leading manufacturers in the market HPS HYDROPNEU’s power units meet the highest standards of quality and reliability.
High-quality hydraulic cylinders and power units are created to meet the requirements and wishes of our customers. True to the concept of "everything from one source" every single component is tuned and operated to its greatest efficiency.
