Hydraulic cylinders - Flow Divider

Flow Divider

Synchronizes the movements of 2 or 4 cylinders.

The Rotary Gear Flow Dividers allow to control accurately the movement on 2 or 4 cylinders either single or double acting. Each geared section is connected by a common axis, the rotating speed is the same for each section and the flow is proportional to the displacement in every chamber. Differential Relief Valves: Our modular design allows us to add differential relief valves in each section of our flow dividers. They also serve to protect the flow divider against excessive differential pressure in the divider which could be caused by actuators becoming stalled or restricted. These valves couldn't be used as general dump valve of the system.

3D file / Price request Catalog

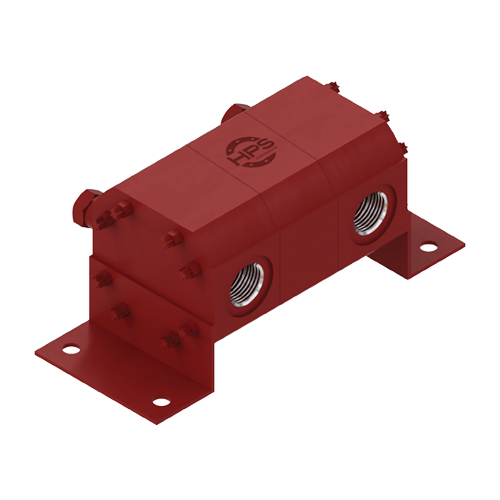

Rotary Gear Flow Dividers, Type DR 1-2 / 2-2

Flow divider, steel body 6.... up to 29,61 l/min, 210 bar. Synchronization of the movements of 2 cylinders.

Rotary Gear Flow Dividers, Type DR 1-2 / 2-2

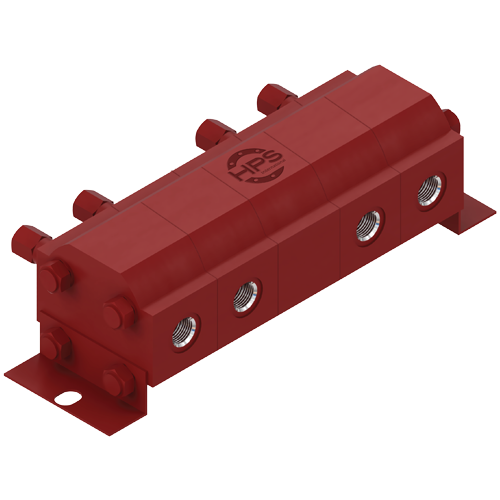

Rotary Gear Flow Dividers, Type DR 1-4 / 2-4

Flow divider, steel body 6.... up to 59,22 l/min, 210 bar. Synchronization of the movements of 4 cylinders.

Rotary Gear Flow Dividers, Type DR 1-4 / 2-4
New

Rotary Gear Flow Dividers, Type DR 2-9

Flow divider, steel body 6.... up to 66,64 l/min, 210 bar. Synchronization of the movements of 2 cylinders.

Rotary Gear Flow Dividers, Type DR 2-9
New

Rotary Gear Flow Dividers, Type DR 4-9

Flow divider, steel body 6.... up to 133,28 l/min, 210 bar. Synchronization of the movements of 4 cylinders.

Rotary Gear Flow Dividers, Type DR 4-9
Couplings

Couplings

  • Mold Couplings and Multicouplings
  •
  • HPS manufactures and offers a range of dividers that feed the power of several hydraulic circuits using a single pump. To support the projects of his clients, HPS offers a wide range of water and oil connectors for molds. Single or multi couplings, they are compatible and interchangeable with the most common components. Engraved HPS, they are easily identifiable and benefit from the guarantee and the HPS service everywhere in the world. HPS also supplies push to connect hoses for clampless connection. Many items are available in stock or on demands for fast delivery, please check our stock availability.
  •
