Manufacturing of cylinders for the plastic injection industry
Plastic Industry
To achieve the requirements of the plastic injection industry, HPS offers various cylinders. The application affects several sectors: Automotive, medical equipments, electricals, electronics, aerospace industry …
See our products
New
New
Round Cylinders
H250 Co Series
- H250 Co cylinders are engineered in a modular system. All mounting types with the exception of the type "trunnion" are based upon one basic form and are built by screwing mounting components. Different piston rod ends can be combined with every mounting type.
- This cylinder can be used under the most severe conditions because of its construction design, its threaded cylindrical design, its sufficiently dimensioned guide lengths at the piston rod, as well as its heavy duty seals.
New
New
Block Cylinders
GVCN Series
- Robust and fast, ideal for heavy movements.
- The GVCN can be used in every application where a well guide movement, speed and stress resistance are needed.
- For example the ejection plates in the mold industry.
- Keyway and O-Ring ports with variable position.
- ISO Seals.
New
New
Block Cylinders
Tandem Series
New
New
Block Cylinders

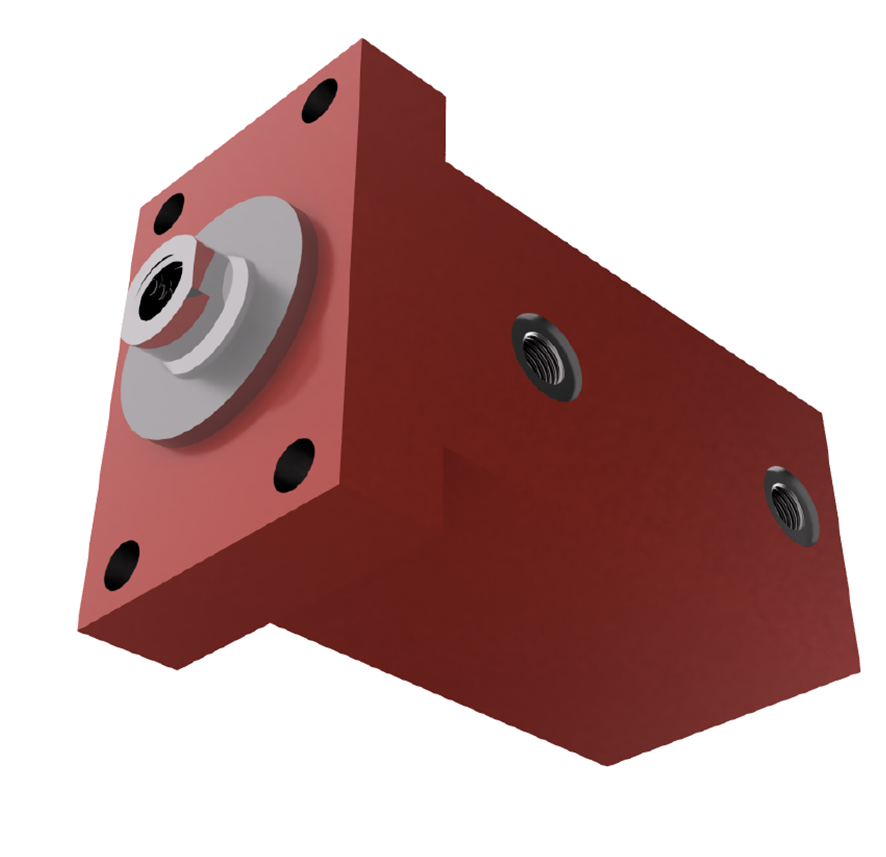

VSP Series
- Includes new SL Mounting
- Compact and fast block cylinder.
- It mounts in place of the HVB Series or cylinders complying with the CNOMO standard 05.07.65 to 05.07.70.
- It is the ideal compromise between compact, robustness and speed.
New
New
Block Cylinders
VCE Series
Compact cylinder with mechanical sensors.
Feedings, fixation and several options fully configurable.
See our productsNew
New
New
Tie Rod Cylinders
VT-VB Series
- Modular and robust tie rods flanges.
- Fully configurable thanks to a multitude of mountings, feedings and options.
- Working pressure: (VT) 160 bar / (VB) 210 bar
- Bores: Ø32 ... 160 mm
New
New
Round Cylinders
R160M Series
- Modular round cylinder.
- Fully configurable, thanks to a multitude of mounting and options.
- Complying with ISO 6020/1 - DIN 24333.
New
New
Auto-Locking Cylinders
HRBN Series
Hydraulic cylinder, Double acting, Auto locking.
- Auto-locking cylinder with mechanical locking.
- Locking at rod out full stroke.
- Lock position is adjustable. +/- 2 mm
New
Specific Cylinders
VRE250 Series (Former HPS VRE)
Specific cylinder cooled by water
See our productsNew
Specific Cylinders
VT-VB Series
- Modular and robust tie rods flanges.
- Fully configurable thanks to a multitude of mountings, feedings and options.
- Working pressure: (VT) 160 bar / (VB) 210 bar
- Bores: Ø32 ... 160 mm
New
New
Specific Cylinders
VPP Series
Ultra-compact cartridge cylinder, standard bore and stroke.
- - Ultra-compact cartridge cylinder, ideal for small spaces and applications requiring high-precision movements.
- - Double Acting cylinder designed for maximum efficiency, using high quality ISO seals.
- - Working pressure up to 200 bar, guaranteeing durability and reliability.
- - Configurable with Bores of 25, 32, and 40 and with four stroke dimensions.
New
Specific Cylinders
Telescopic hydraulic cylinder - New
Double stroke in standard body
See our productsNew
Specific Cylinders
Tandem Series
New
New
Accessories
Flow Divider
Synchronizes the movements of 2 or 4 cylinders.
