Manufacture and sale of Hydraulic cylinder with external guidance
Hydraulic cylinder with external guidance
- Hydraulic cylinders are basically meant to be linear actuators, which should only be used as these. One exception is our hydraulic cylinder with an external guidance. We are building these cylinders with a drive function, as well as a guidance of the whole unit. We are processing the running surface, so that it is resilient against external effects and form-fitting with the connections.

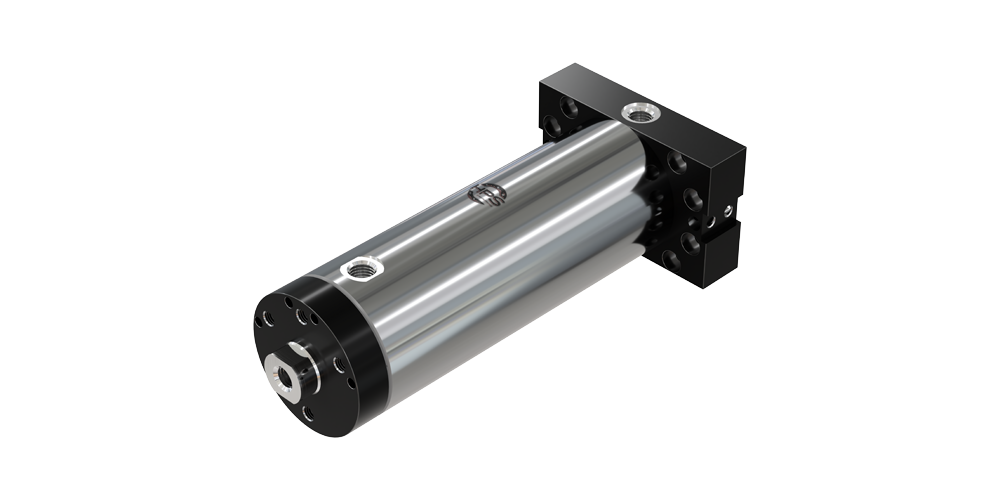

- The highlight of the hydraulic single-rod cylinder type FZ is its tempered external guidance surface on the cylinder tube.
- Having a large-sized surface on the cylinder tube, this cylinder undertakes the task of ensuring a very solid guidance of load in motion which is coupled with the piston rod.
- This single rod cylinder is optionally available with damping on one or on both sides.
- In addition, cylinders with air bleed connections or with self bleeding are available.
- Different positions of hydraulic connections enable a very flexible attachment to the machine or to the tool.
- Hydropneu constructs the guided cylinder fulfilling your needs and depending on your requirements.
- Applications and operational areas:
- FZ cylinders are mainly used in pressure foundries at large tools with heavy valves.
- Generally, two guided cylinders and the piston rods are coupled to the valve using a crossbar, which takes over the counterpart to the guidance.
- In this configuration, the piston area of the cylinder is used to pull the valve.
- Technical data:
- Piston diameter: 40 - 160 mm
- Piston rod diameter: 28 - 110 mm
- Stroke: up to 1000 mm
- Operating pressure: 160 bar
- Mounting type: flange on bottom
- Piston rod: with external or internal thread
- Connections: sideways or on the side of the piston on the flange area
- Cushioning: on the head, on the bottom or on both sides, adjustable
- Seals: different designs, piston rings for the area of die casting
- SERVICE:
- CAD Data Configurator
- We will gladly advise you on the design for your specific application.
- We will also mount and commission your specialized cylinder on-site.
- Please do not hesitate to call us at + 49 (0) 711 / 34 29 99-0
- You can also use our contact form.
