Manufacture and sale of Hydraulic Cylinders with Position and Path Detection
Hydraulic Cylinders with Position and Path Detection
- Do you need an inexpensive way for a position detection, a high-precision path detection system, or a robust end position control?
- HPS Hydropneu offers you a variety of hydraulic cylinders with position or path detection.
- A position or path detection is, in combination with all HYDROPNEU hydraulic cylinders, on request possible. Depending on the intended purpose, we offer you the optimal system for the best possible realization of your requirements.
- Possibilities for position or path detection are:
- Attached proximity switches
- If you need a reliable, low-priced, and contactless detection of the piston position of hydraulic cylinders in the low- and mid-pressure range (up to a max. of 120 bar), the attached, adjustable proximity switch is highly suitable. Additionally, multiple switching points are easily realizable. Attached proximity switches allow an adjustment across the whole stroke and therefore a safe monitoring of the motion sequences of hydraulic cylinders and the connected machines.

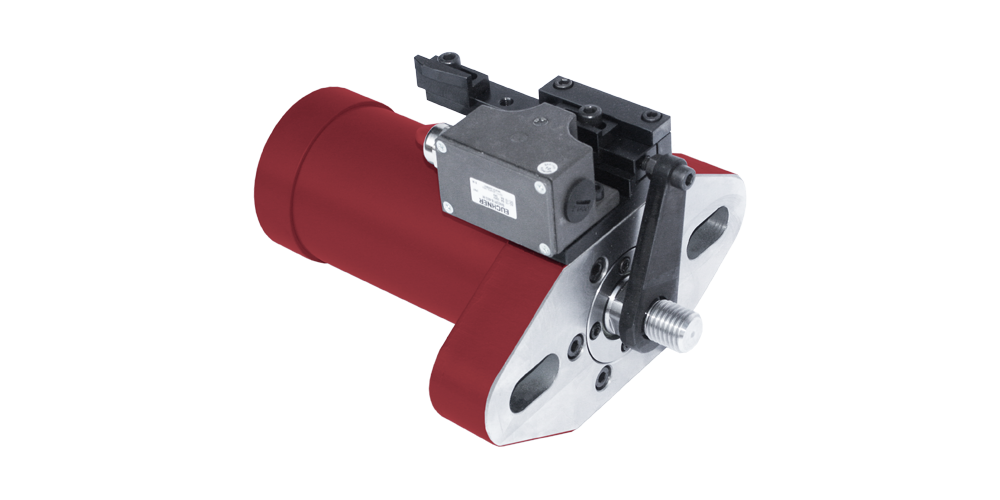

- Cam switches
- Hydraulic cylinders with cam switches enable the position detection of the piston rod through a shift linkage with control cams. The position and amount of the control cams can be changed afterwards. Cam switches ensure an exact, flexible, and especially resilient position detection of the piston rod.
- Incorporated, pressure-resistant proximity switches
- Mounted, pressure-resistant, and inductive proximity switches are a precise and inexpensive solution if you need to indicate the stroke end position. When the piston rod reaches an end position, it will be electronically signaled by the proximity switch. Inductive proximity switches work contactless and are therefore wear-free. They are usable for every cylinder type.
- Integrated positioning system
- If you need to detect the movement of a piston rod or any piston rod position in a reliable, precise, wear-free and durable way, the integrated positioning system is the right choice. The detection via an integrated positioning system takes place within the piston rod. The position of the piston rod can therefore be detected very precisely and is available in an analogue or digital signal.
- SERVICE:
- CAD Data Configurator
- We will gladly advise you on the design for your specific application.
- We will also mount and commission your specialized cylinder on-site.
- Please do not hesitate to call us at + 49 (0) 711 / 34 29 99-0
- You can also use our contact form.
