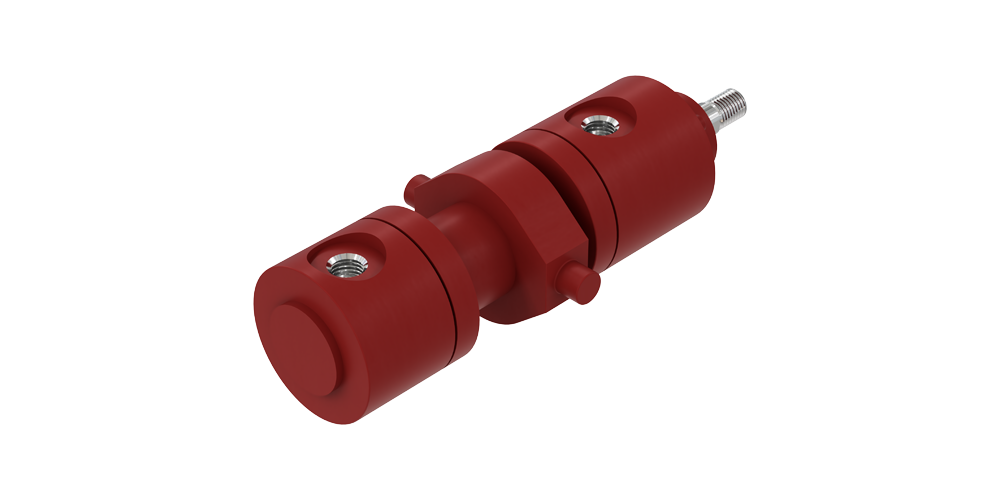

Type 48

• Type 48 cylinders are engineered in a modular system. All mounting types with the exception of the type "trunnion" are based upon one basic form and are built by screwing mounting components.
•
• Different piston rod ends can be combined with each mounting type.
•
• Important features of this series:

• Piston diameter: 25 - 200 mm
• Strokes up to 2000 mm
• Operating pressure: 100 bar (10 MPa)
• With / without end position cushioning with identical installation dimensions
• Two area ratios phi = 1.25 and phi = 2.0
• Piston speed up to 0.5 m/s (higher speeds on request)
•
• Mounting components according to the standards ISO 8133,
• DIN 24 555, DIN 24 556556 are to be found in accessories.
•
